| 1 |

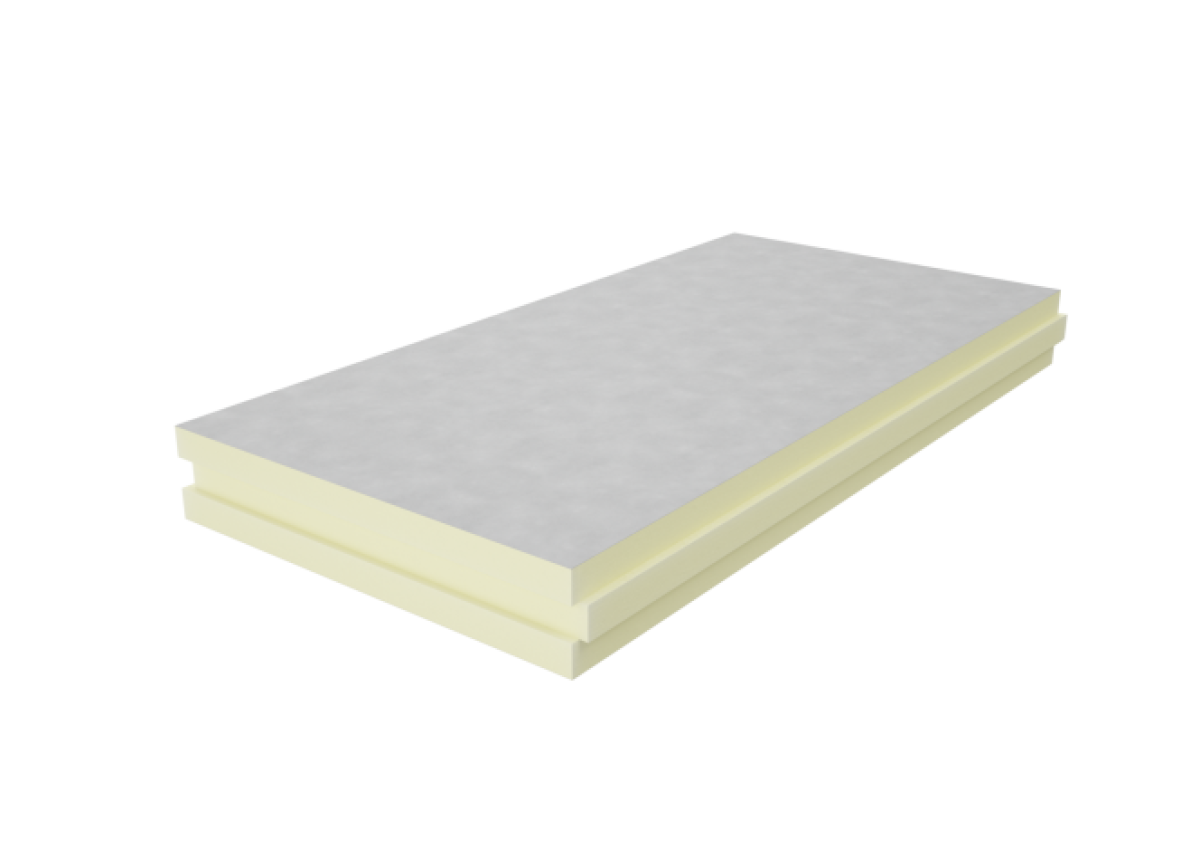

Kind of core: |
Rigid polyisocyanurate foam(PIR) |
| 2 |
Density [kg/m3]: |
p = 30 kg/m3 |
| 3 |
Declared heat transfer coefficient for lining λD: |
λD = 0,027
for 20 ≤ d < 80 mm |
λD = 0,026
for 80 ≤ d ≤ 120 mm |
λD = 0,025
for 120 < d ≤ 250 mm |
|
| 4 |
Type of facing: |
Double-sided cladding made of glass veil (WS). |
| 5 |
Standard board dimensions [mm]: |
600 x 1200 ; 1200 x 2400 |
| 6 |
Available boards dimensions [mm]: |
1000 x 1200 ; 1200 x 1200 ; 1800 x 1200 ; 1200 x 3000 |
| 7 |
Joint types*: |
FIT - flat milling, LAP - stepwise milling, TAG - tongue and groove |
| 8 |
Board thicknesses available [mm]: |
from 20 to 250 mm |
| 9 |
Board thickness [mm]: |
| 20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
120 |
130 |
|
| 10 |
Thermal resistance RD: |
| 0,70 |
1,10 |
1,45 |
1,85 |
2,20 |
2,25 |
3,05 |
3,45 |
3,80 |
4,20 |
4,80 |
5,20 |
|
| 11 |
Heat transfer coefficient U for roof: |
| 1,14 |
0,80 |
0,62 |
0,50 |
0,42 |
0,37 |
0,31 |
0,28 |
0,25 |
0,23 |
0,20 |
0,19 |
|
| 12 |
Heat transfer coefficient U for wall and floor: |
| 1,10 |
0,78 |
0,61 |
0,49 |
0,42 |
0,36 |
0,31 |
0,28 |
0,25 |
0,23 |
0,20 |
0,19 |
|
| 13 |
Board thickness [mm]: |
| 140 |
150 |
160 |
170 |
180 |
190 |
200 |
210 |
220 |
230 |
240 |
250 |
|
| 14 |
Thermal resistance RD: |
| 5,60 |
6,00 |
6,40 |
6,80 |
7,20 |
7,60 |
8,00 |
8,40 |
8,80 |
9,20 |
9,60 |
10,0 |
|
| 15 |
Heat transfer coefficient U for roof: |
| 0,17 |
0,16 |
0,15 |
0,14 |
0,14 |
0,13 |
0,12 |
0,12 |
0,11 |
0,11 |
0,10 |
0,10 |
|
| 16 |
Heat transfer coefficient U for wall and floor: |
| 0,17 |
0,16 |
0,15 |
0,14 |
0,14 |
0,13 |
0,12 |
0,12 |
0,11 |
0,11 |
0,10 |
0,10 |
|
| 17 |
Reaction to fire (single board): |
20-49: F class, 50-250: E class |
| 18 |
Reaction to fire (in the system): |
B-s2,d0 (trapezoidal sheet) |
| 19 |
Broof(t1) / NRO : |
Broof(t1) (mechanism gluing) |
| 20 |
Fire resistance: |
REI 30/REI 15 (wg Fires/ITB) (od 70 mm - 250 mm) |
